THE WP-UV-T WALL PRINTER

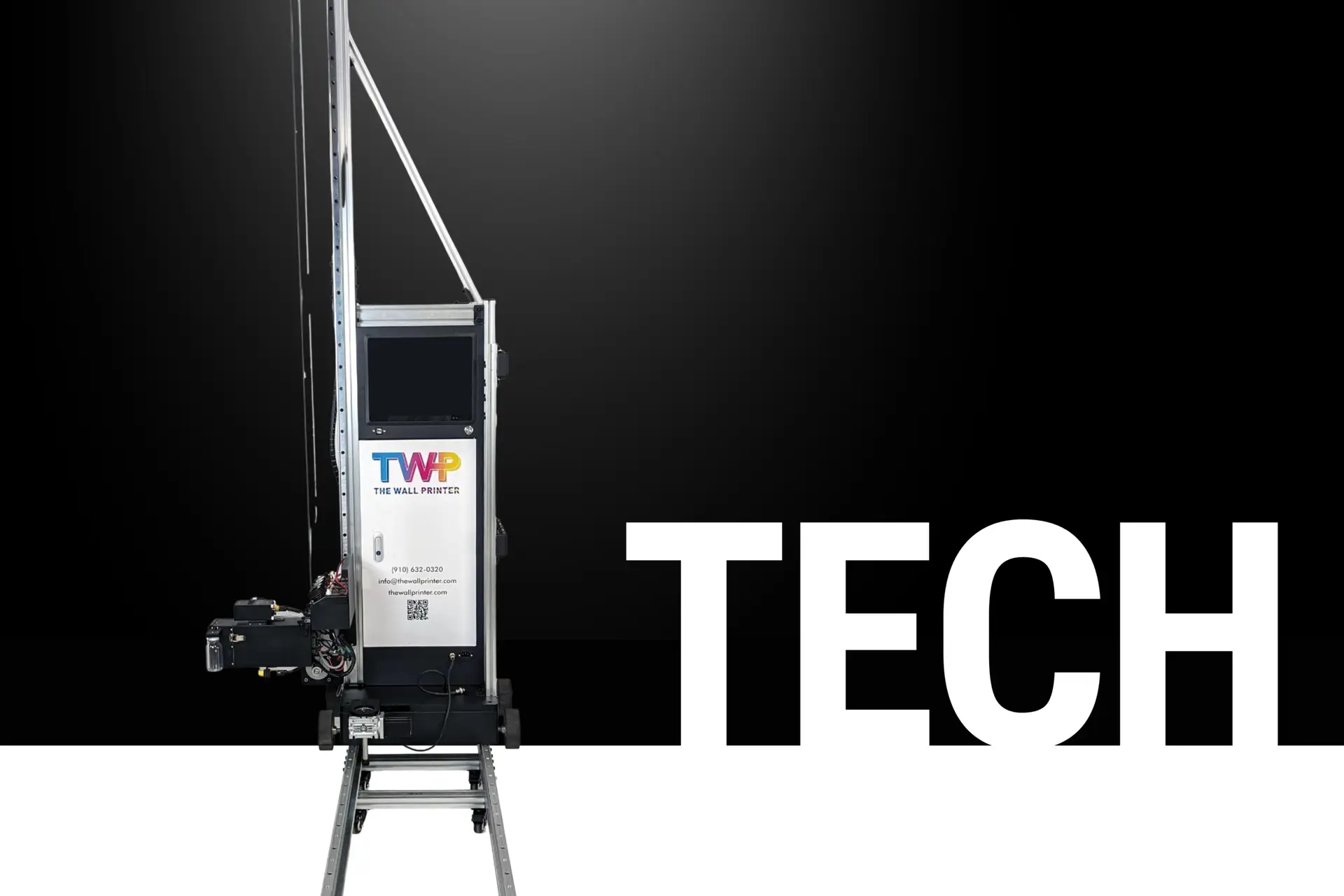

The WP-UV-T Wall Printer
A Satisfied Customer Giving His Thoughts on the New UV-T Wall Printer!
The WP-UV-T WALL Painting Machine
A 5’ x 8’ Wall Print, i.e. a 40 sq ft (~3.5 sq meter) should return a minimum of $600.00
@ $15.00/sq ft installed at the customer location, covering ink, travel, setup, labor
(6 hours @ $15/hr). Net Profit on this 6-hour Wall Printing job should be $500.00!
SET-UP TIME
60 Minutes
• Assembly: 55 Minutes
• Printhead Priming Time: 5 Minutes
TAKE DOWN TIME
10 Minutes
T-SERIES WALL PRINTER
1. CMYK+White 5 Colors
2. All-new track and wheel system.
3. The world’s thinnest Wall Printer.
4. Prints white, dark or non-white surfaces.
5. The only vertical printer with white printing
capability.
6. Prints on most surfaces.
7. Ultrasonic sensors adjusts for uneven surfaces.
8. Software allows for unlimited print height and
width.
PRINTABLE SURFACES
• Glass, tile, iron, PVC (plastics), ABS and other
non-absorbent walls.
• Putty wall, latex paint wall, brick wall, cinder
block, stucco, paper, wood and more.Up to 20 sq ft/hr (2 sq m/hr)
The WP-UV-T Wall Printer is capable of printing at
varying speeds.
This is the time to print a 5’ x 8’ image, and the amount of ink used for the print:
• 40 sq ft uses 15ml of ink (.37ml per sq ft) and takes 2 hours to print.
Ink Costs $0.18/ml or $175/1L
• 40 sq ft uses 15ml, costing $2.70
PRINTHEAD RESOLUTION
720×1440
Printhead
Epson DX7
Supported Image Formats
EPS, JPEG, JPG, PSD, TIFF
PRINTABLE SIZE
Height: 5’5” or 1.65m (8’8” or 2.65m with extended rail); Width: Unlimited
PRINT SPEED
Up to 20 sq ft/hr (2 sq m/hr)
The WP-UV-T Wall Printer is capable of printing at
varying speeds.
SHIPPING DIMENSIONS (PACKAGING)
Height: 110in – Width: 33in – Depth: 29in – Weight: 400lbs
XYZ AXIS DIMENSION
• X-axis: 43cm
• Y-axis: 250cm
• Z-axis: 15cm
Ink
CMYK+White, oil-based UV-ink for Epson printheads
PRINT TECHNOLOGY
VSDT variable ink drop technology, precision printing via laser crosshair
POWER SUPPLY
110V~380V
CONNECTION PORTS
2 x USB
OTHER SPECIFICATIONS
MACHINE BODY
Aluminum-magnesium alloy profile, frame structure.
ENVIRONMENT
Without ink: 14° to 120°F (-10° to 49°C), 10% – 80% relative humidity
With ink: 60° to 90°F (15° to 32°C), 10% – 80% relative humidity
PC INSIDE
12 inch capacitive screen, resolution 1024×768, Intel Core i3 dual-core processor, 4GB RAM, 120GB SSD, Windows 7 Operating System, WiFi capabilities
Surface SENSOR
2 ultrasonic sensors, bidirectional operation
OPERATION FEATURES
Moving pulley, Self-propelled slide
